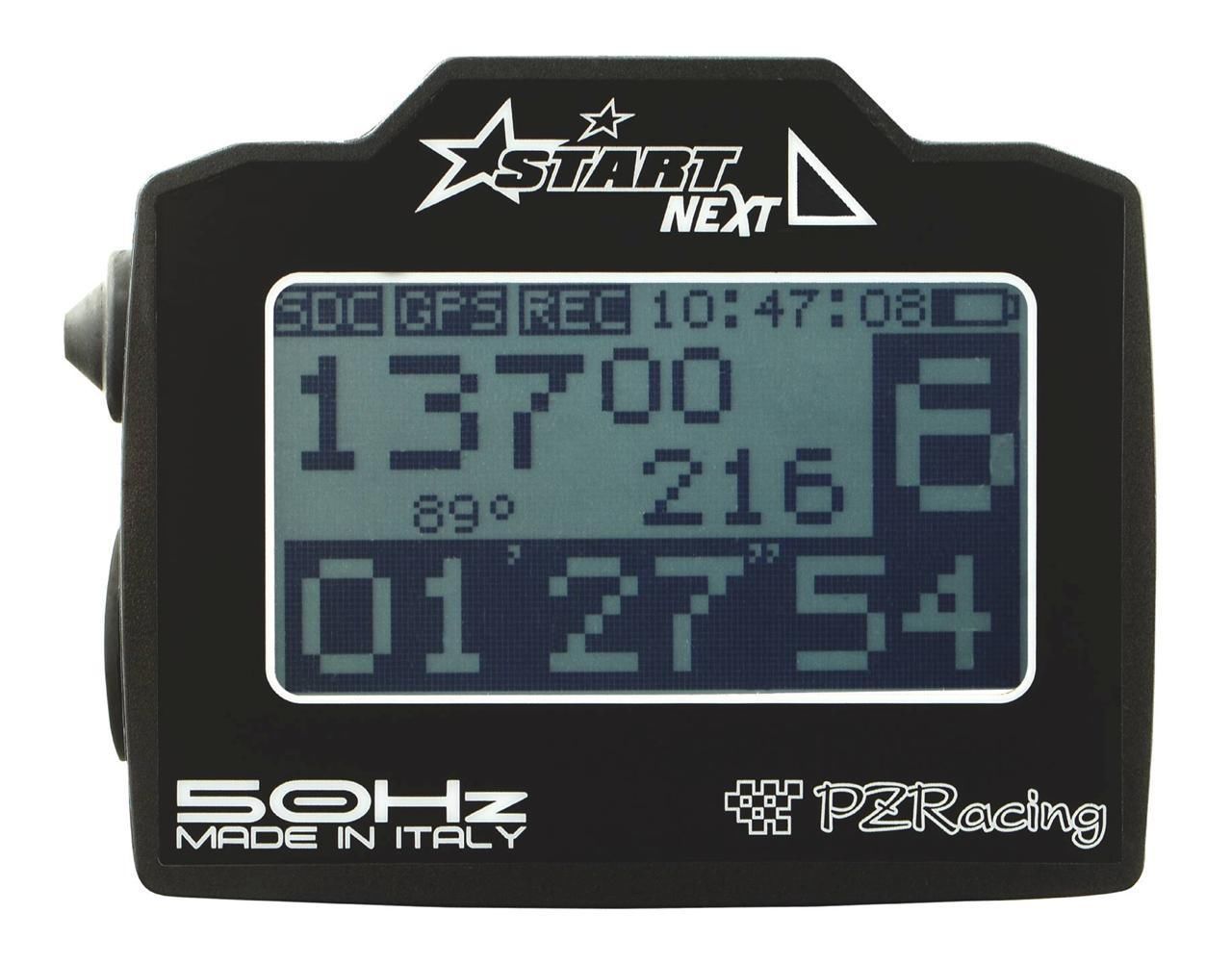

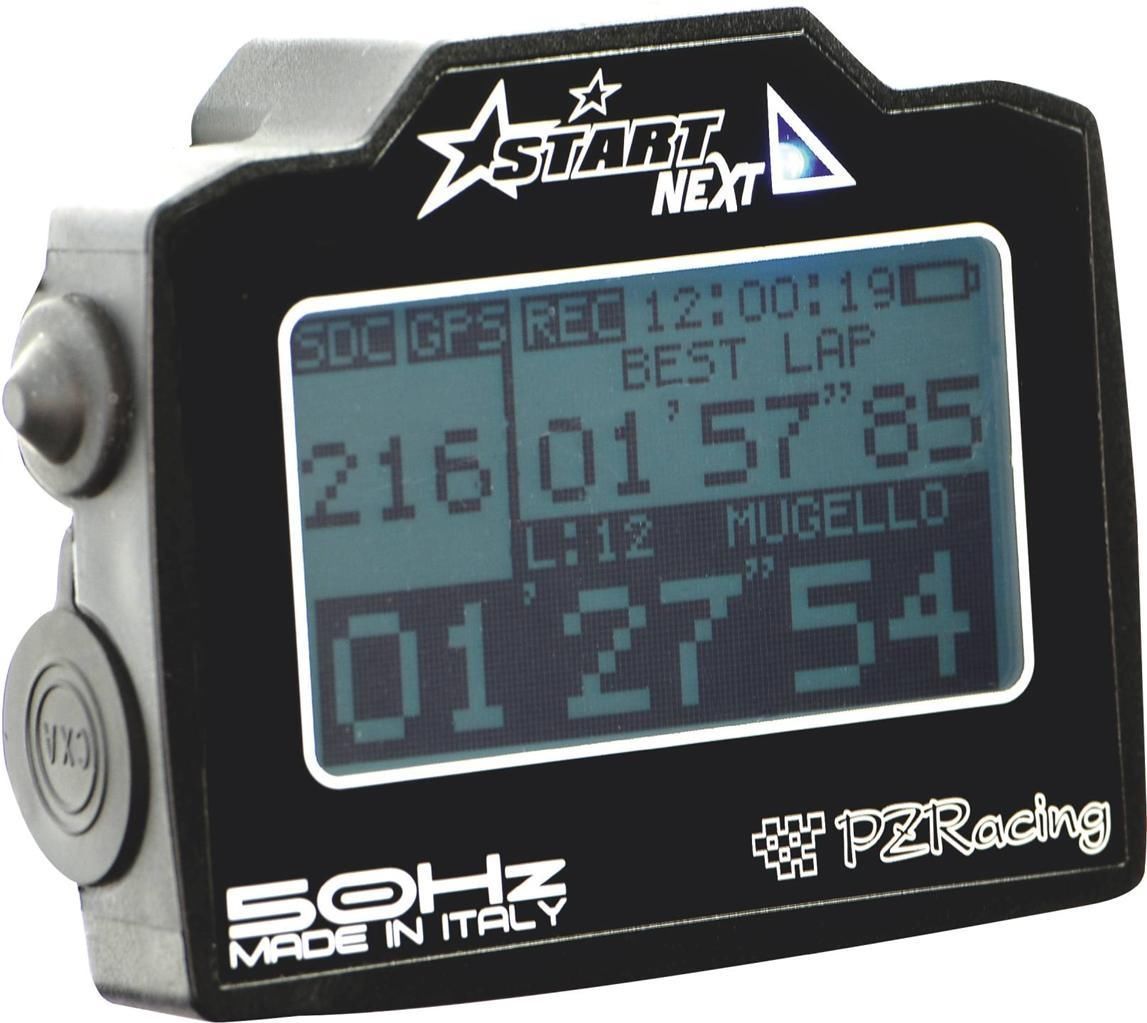

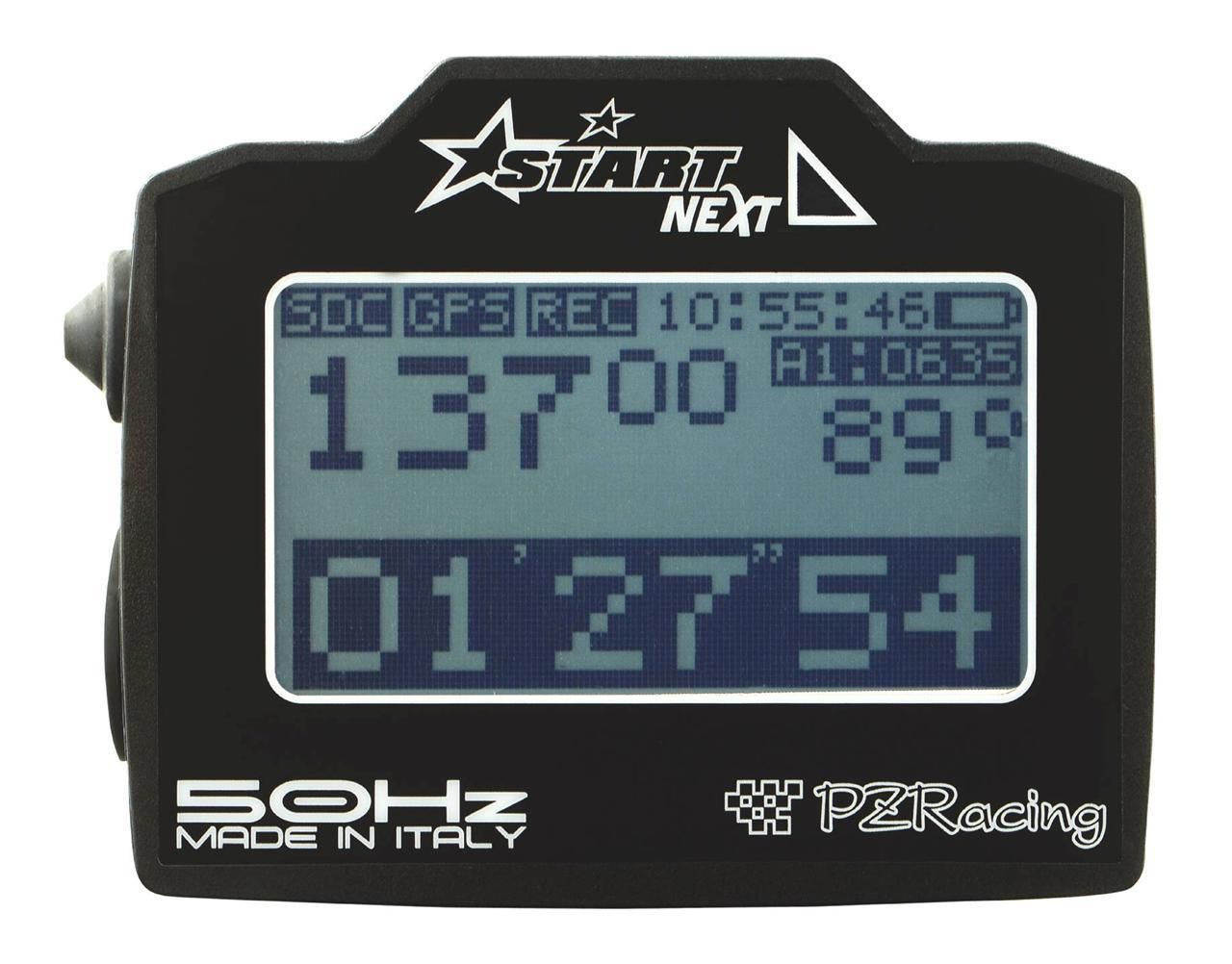

ST200-B PZ-Racing "Start Basic" GPS Lap timer 50Hz touchscreen
✔ In our store you will find all available parts to prepare your bike for race season.
✔ PZ Racing data acquisition, gear indicators, shift lights, pit crew communication.
✔ Contact us for special racing bundles and packages.
Description
Start Basic and Start Next are the only chronometers in the world that use a GPS receiver with a sampling rate of 50Hz guaranteeing accuracy of lap times to one hundredth of a second and precision visualization of GPS trajectories which no other chronometer commercially available on the market today is capable of offering. The new Start devices use a touch screen display with “Glove Sensitive” technology, allowing the rider to use the device even while wearing gloves, whilst the icon menu make navigation easy and intuitive. The new range of chronometers use an SD memory card, thus eliminating data download times and reducing the probability of using up all the device memory. Thanks to automatic detection and a global database, the circuit will be automatically detected by the chronometer without the need to press any key. Start Basic is the entry-level version, without data acquisition; lap times are visualized directly on the display. Start Next memorizes GPS trajectories, speed, the direction and acceleration thereby allowing riders to study and analyze their performance on the PC. It is possible to connect both models to the Box Expander modules.
50Hz GPS integrated receiver: the only lap timer in the world with a revolutionary 50Hz GPS receiver; detecting the position 50 times per second Start is able to calculate lap times and draw trajectories with extreme accuracy.
Touch Screen: say goodbye to uncomfortable buttons, Start is equipped with a touch screen with “Gloves Sensitive” technology that allows use even with gloves. The touch screen makes using Start simple and intuitive thanks to the icon menu.
3 split times: is able to manage and record up to three split times.
Data acquisition: Start Next allow the attainment of trajectories and speed count through gps. Using optional expansion module it is also possible to obtain up to 9 analogical and 3 digital channels.

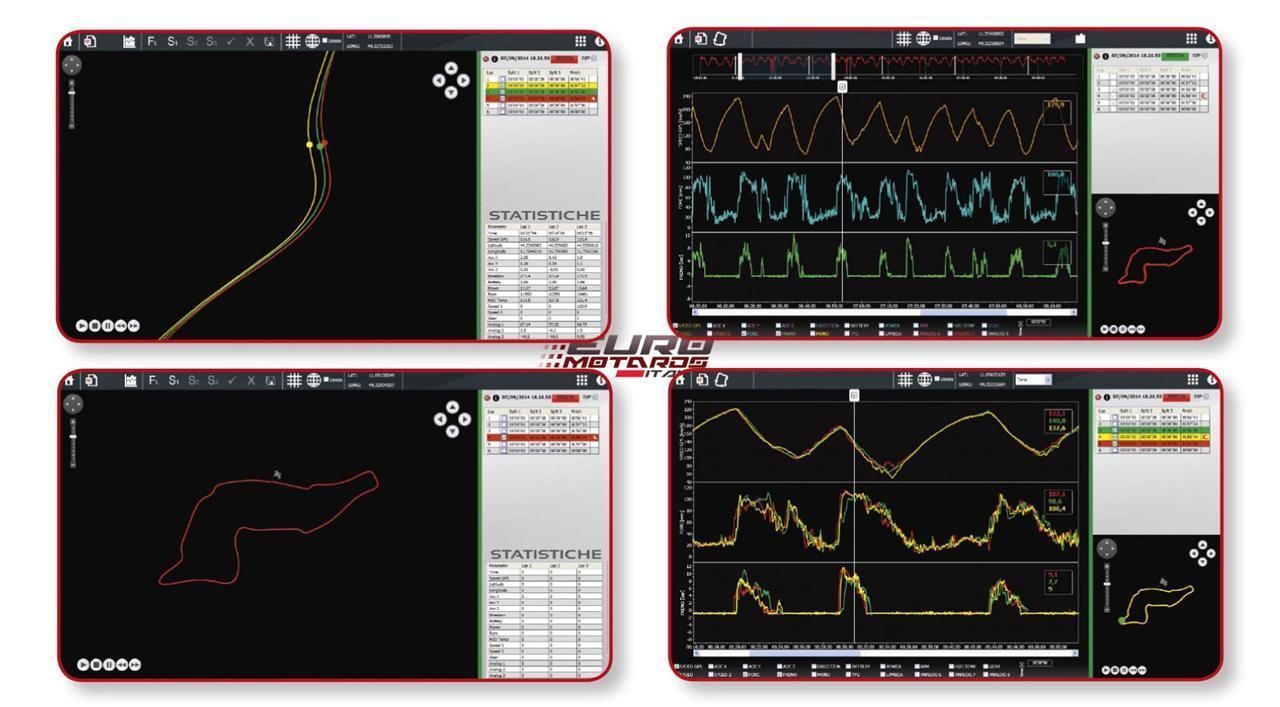

Data analysis software: RacePro is the latest state-of-the-art analytical software designed for Start Next, you can analyze the path and the performance for every single curve and also analyze all the analogical and digital channels connected to the lap timer.
DOWNLOAD AND TRY RACEPRO: www.pzracing.it/en/project/racepro
Internal battery: Start comes with an internal rechargeable lithium battery. Internal battery make the appliance particularly suitable when used on all those vehicles not provided with on board batteries, for example Supermotard, Kart, Scooter, etc.
Back lit display: all chronometers have a rear illuminated display which can be used in times of bad visibility. By selecting an item on the menu it is possible to activate and deactivate the back light..
RaceRender function: thanks to the program RaceRender you will be able to make video with overlay of data downloaded from your Start, discover RaceRender: www.pzracing.it/en/project/racerender
Characteristics
- Integrated 50Hz GPS receiver
• Touch screen with “Gloves Sensitive” technology
• 1/100s precision
• Management of up to 3 split times
• GPS speed visualization
• Internal triaxial accelerometer
• 5 visualization screens
• Storage of values per lap and absolute best
• Storage of the trajectories (only Next version)
• Micro SD storage (4GB class)
• “Best Lap” Led/Maximum RPM Led/Temperature warning Led
• 2 engine meters
• 2 odometers
• Retrieval of up to 9 analogue channels and 3 digital channels (only Next version)
• 50Hz sampling of the connected channels (only Next version)
• Inserted gear indicator (optional)
• Automatic circuit recognition
• Global circuits database
• PC set-up of a new circuit
• PC software for data analysis
• Integrated lithium battery
• Optional external battery connection
• Automatic shut down
• Back light
• Anti-impact container
• Water resistant
• Size: 85,6×70,5×27,6mm
Instructions will be included. As with all motor parts professional installation is recommended.
